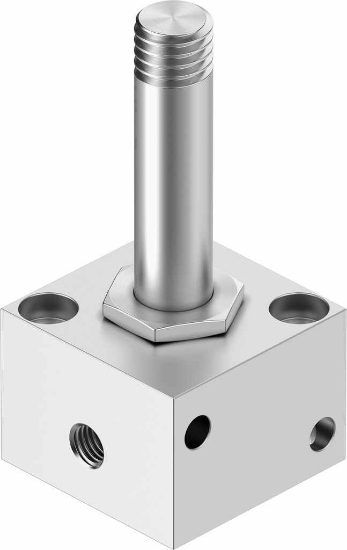

MFH-2-M5(4573) سلنویید ولو فستو
- Valve function2/2-way, closed, monostable
- Type of actuationElectric
- Standard nominal flow rate75 l/min
- pneumatic working portM5
- Operating pressure0 MPa ... 0.8 MPa
- Operating pressure0 bar ... 8 bar
- DesignPoppet seat
- Type of resetMechanical spring
- Nominal size1.5 mm
- Exhaust-air functionWithout flow control option
- Sealing principleSoft
- Mounting positionoptional
- Manual overrideDetenting
- Type of pilotingDirect
- Flow directionNon-reversible
- Symbol00991398
- Switching time off5 ms
- Switching time on6.2 ms
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformityVDMA24364-B2-L
- Media temperature-15 °C ... 60 °C
- Ambient temperature-15 °C ... 40 °C
- Type of mountingWith through-hole
- Pneumatic connection, port 1M5
- Pneumatic connection, port 2M5
