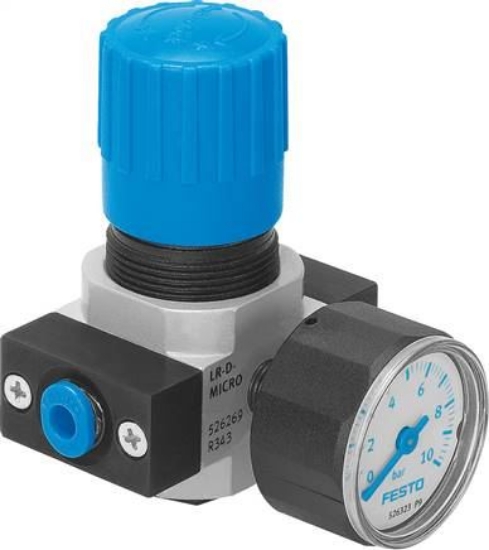

size
|
Micro |
|
Model series
|
D |
|
Actuation fuse
|
Rotary button with stopper |
|
installation position
|
arbitrary |
|
Construction set up
|
Directly controlled membrane control valve |
|
Controller function
|
With relieving |
|
pressure display
|
with pressure gauge |
|
Operating pressure [bar]
|
1 to 10 |
|
Pressure regulation range [bar]
|
0.5 to 7 |
|
Max. pressure hysteresis [bar]
|
0,3 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Air purity class at the output
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Medium temperature [°C]
|
-10 to 60 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Product weight [g]
|
110 |
|
Fastening type
|
pipe installation |
|
Pneumatic connection 1
|
QS-6 |
|
Pneumatic connection 2
|
QS-6 |
|
Material information
|
RoHs compliant |
|
Connection plate material
|
Aluminium wrought alloy |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Diaphragm material
|
NBR |
|
Weight
|
110 g / Pcs |
|
GTIN
|
4052568083823 |
|
Customs duty number
|
84811099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Pressure regulators, D series (english) , Data sheet |
