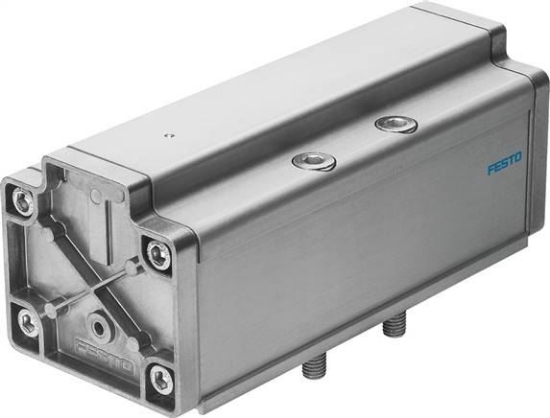

Valve function
|
5/2 bistable |
|
Actuation type
|
pneumatic |
|
Build.width [mm]
|
76 |
|
Normal nominal flow [l/min]
|
6.000 |
|
Operating pressure [bar]
|
-0.9 to 16 |
|
Construction set up
|
Piston pusher |
|
Nominal width [mm]
|
18,0 |
|
Pitch dimension [mm]
|
82 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
ISO 5599-1 |
|
Hand assist actuation
|
none |
|
ISO-Code
|
401 |
|
Control type
|
Direct |
|
Flow direction
|
Reversible |
|
Coverage
|
positive Überdeckung |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Medium temperature [°C]
|
-10 to 60 |
|
Noise level [Dezibel (?]
|
85 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Product weight [g]
|
1.800 |
|
Fastening type
|
on connection plate |
|
Pneumatic connection 1
|
Connection plate Size 4 to ISO 5599-1 |
|
Pneumatic connection 2
|
Connection plate Size 4 to ISO 5599-1 |
|
Pneumatic connection 3
|
Connection plate Size 4 to ISO 5599-1 |
|
Pneumatic connection 4
|
Connection plate Size 4 to ISO 5599-1 |
|
Pneumatic connection 5
|
Connection plate Size 4 to ISO 5599-1 |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium |
|
Shifting time um [ms]
|
20 |
|
Control pressure [bar]
|
2 to 16 |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Control air 14 connection
|
Connection plate Size 4 to ISO 5599-1 |
|
Control air 12 connection
|
Connection plate Size 4 to ISO 5599-1 |
|
Weight
|
1.800 g / Pcs |
|
GTIN
|
4052568112011 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Standard valves to ISO 5599-1 (english) |
|
Document
|
Data sheet |
