T-slot cylinder sensor

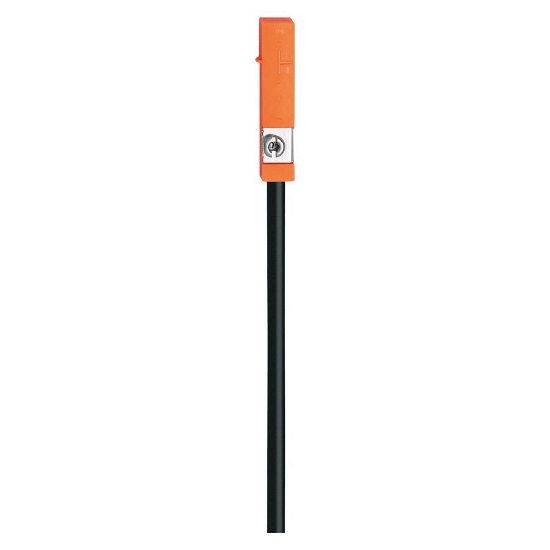

ifm MK5100 T-slot cylinder sensor
| Product characteristics |
| Electrical design |
PNP |
| Output function |
normally open |
| Dimensions [mm] |
25 x 5 x 6.5 |
| Electrical data |
| Operating voltage [V] |
10...30 DC |
| Current consumption [mA] |
< 10 |
| Protection class |
III |
| Reverse polarity protection |
no |
| Max. power-on delay time [ms] |
30 |
| Outputs |
| Electrical design |
PNP |
| Output function |
normally open |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
100 |
| Switching frequency DC [Hz] |
10000 |
| Short-circuit protection |
no |
| Overload protection |
no |
| Detection zone |
| Response sensitivity [mT] |
2.8 |
| Travel speed [m/s] |
> 10 |
| Accuracy / deviations |
| Hysteresis [mm] |
< 1.5 |
| Repeatability [mm] |
< 0.2 |
| Operating conditions |
| Ambient temperature [°C] |
-25...85 |
| Protection |
IP 65; IP 67 |
| Tests / approvals |
| EMC |
| EN 61000-4-2 ESD |
- CD / 8 kV AD |
| EN 61000-4-3 HF radiated |
10 V/m |
| EN 61000-4-4 Burst |
2 kV |
| EN 61000-4-6 HF conducted |
10 V |
| EN 55011 |
class B |
|
| MTTF [years] |
3694 |
| UL approval |
|
| Mechanical data |
| Weight [g] |
28.2 |
| Mounting |
flush mountable |
| Type of mounting |
fastening clamp with combined slot / hexagon socket, width across flats 1.5 |
| Cylinder type |
T-slot cylinders |
| Dimensions [mm] |
25 x 5 x 6.5 |
| Materials |
housing: PA; fastening clamp: stainless steel |
| Displays / operating elements |
| Display |
| switching status |
1 x LED, yellow |
|
| Accessories |
| Items supplied |
| rubber placeholder: 1 |
| Cable clip: 1 |
|
| Remarks |
| Notes |
note the temporary technical changes in short-circuit protection, overload protection and reverse polarity protection |
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Cable: 2 m, PUR; 3 x 0.14 mm² |
