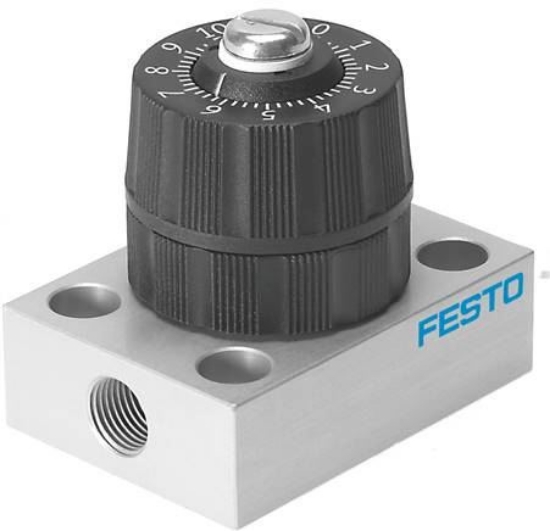

Valve function
|
Throttle blowback function |
|
Pneumatic connection 1
|
G1/8 |
|
Pneumatic connection 2
|
G1/8 |
|
Actuation type
|
Manually |
|
Setting element
|
Rotary button with scale |
|
Fastening type
|
on connection plate |
|
Normal nominal flow in one-way flow control [l/min]
|
75,8 |
|
Normal nominal flow in check valve direction [l/min]
|
245 |
|
Operating pressure [bar]
|
0 to 8 |
|
ambient temperature [°C]
|
-10 to 50 |
|
Housing material
|
PA reinforced |
|
installation position
|
arbitrary |
|
Operating pressure form 2 to 1 [bar]
|
0 to 8 |
|
Normal nominal flow in one-way flow control from 1 to 0 bar [l/min]
|
38,00 |
|
Normal nominal flow in check valve direction from 1 to 0 bar [l/min]
|
25 to 90 |
|
Normal flow In one-way flow control 6 -> 0 bar [l/min]
|
129,0 |
|
Normal flow In check valve direction 6 -> 0 bar [l/min]
|
245 |
|
Operating medium
|
Inert gases |
|
Information about operating and control medium
|
Oiled operation not possible |
|
Medium temperature [°C]
|
-10 to 50 |
|
Product weight [g]
|
110 |
|
Material information
|
LABS containing materials included |
|
Seals material
|
NBR |
|
Screws material
|
Steel |
|
Connection plate material
|
Aluminium wrought alloy |
|
Weight
|
110 g / Pcs |
|
GTIN
|
4052568179847 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: GRP (english) |
|
Document
|
Data sheet |
