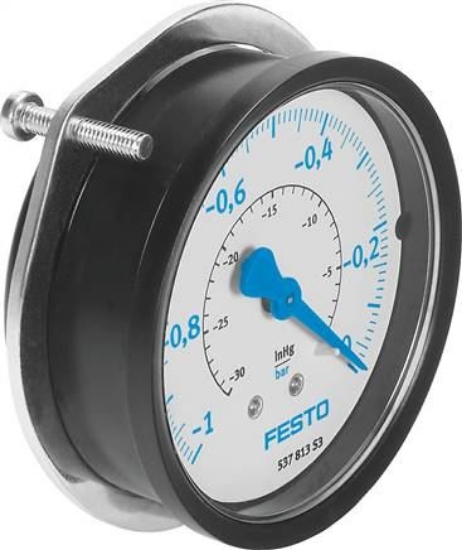

Nominal size pressure gauge
|
63 |
|
Connection position
|
Back side centred |
|
Based on standard
|
DIN EN 837-1 |
|
Seal type on stud
|
coating |
|
installation position
|
arbitrary |
|
Construction set up
|
Pipe spring pressure gauge |
|
Display range [bar] [bar]
|
-1 |
|
Display range []
|
-30 |
|
Scale
|
Bar (external) |
|
Operating pressure [bar]
|
-1 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Factor continuous loading
|
0.75 |
|
Factor alternating strain
|
0.66 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Medium temperature [°C]
|
-20 to 60 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Product weight [g]
|
121 |
|
Measurement precision class
|
2,5 |
|
Fastening type
|
Front panel integration |
|
Pneumatic connection
|
G1/4 |
|
Stud material
|
Brass |
|
Material information
|
RoHs compliant |
|
Housing material
|
ABS |
|
Window material
|
PMMA |
|
Weight
|
121 g / Pcs |
|
GTIN
|
4052568015947 |
|
Customs duty number
|
90262040 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Vacuum gauges (english) |
|
Document
|
Data sheet |
