size
|
Mini |
|
Width [mm]
|
88 |
|
Model series
|
DB |
|
Actuation fuse
|
Rotary button with stopper |
|
installation position
|
vertical ± 5° |
|
Condensate drain
|
Semi-automatic |
|

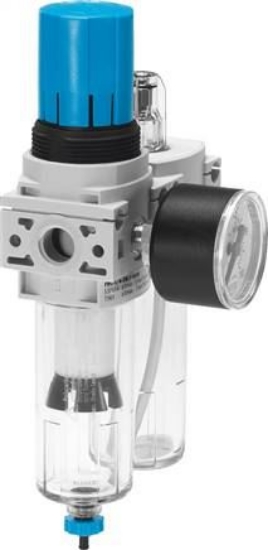

Construction set up
|
Filter controller oiler |
|
Filter porosity [Mikrometer]
|
5 |
|
Controller function
|
With Return current behaviour |
|
pressure display
|
with pressure gauge |
|
Operating pressure [bar]
|
1.5 to 10 |
|
Pressure regulation range [bar]
|
0.5 to 7 |
|
Max. pressure hysteresis [bar]
|
0,5 |
|
Normal nominal flow [l/min]
|
>= 550 l/min |
|
Operating medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
|
Released oils
|
ARAL Vitam GF 32 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Air purity class at the output
|
Inert gases |
|
Medium temperature [°C]
|
-5 to 50 |
|
Oil viscosity
|
ISO VG 32 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
300 |
|
Fastening type
|
pipe installation |
|
Pressure gauge connection
|
G1/8 |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Seals material
|
NBR |
|
Rotary button material
|
POM |
|
Filter material
|
PE |
|
Housing material
|
PA reinforced |
|
Clamps material
|
PC |
|
Weight
|
300 g / Pcs |
|
GTIN
|
4052568173807 |
|
Customs duty number
|
84811005 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Service units, D series (english) , Data sheet |
