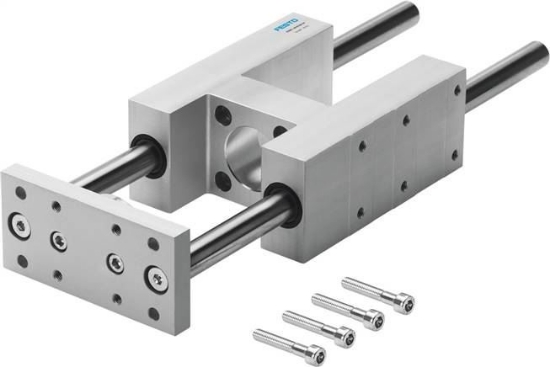

FENG-40-200-KF (34502) Guide unit

برای مشاهده قیمت، ثبت نام کنید.

size	40
Stroke [mm]	200
installation position	arbitrary
Guide	ball guide
Construction set up	Guide
ambient temperature [°C]	-20 to 80
Max. force Fy [N]	1.000
Max. force Fy static [N]	1.260
Max. force Fz [N]	1.000
Max. force Fz static [N]	1.260
Max. torque Mx [Nm]	44
Max. torque Mx static [Nm]	55
Max. torque My [Nm]	52
Max. torque My static [Nm]	65
Max. torque Mz [Nm]	52
Max. torque Mz static [Nm]	65
Pushing force [N]	15
Product weight [g]	3.010
Fastening type	with female thread
Material information	Copper and PTFE-free
Guide element material	Quenched and tempered steel
Housing material	Aluminium wrought alloy, anodised
Joch plate material	Aluminium wrought alloy, anodised
Weight	3.010 g / Pcs
GTIN	4052568115289
Customs duty number	84129080
RoHS compliant	Yes
Manufacturer	Festo
Document	Group data sheet: FEN/FENG (english)
Document	Data sheet
