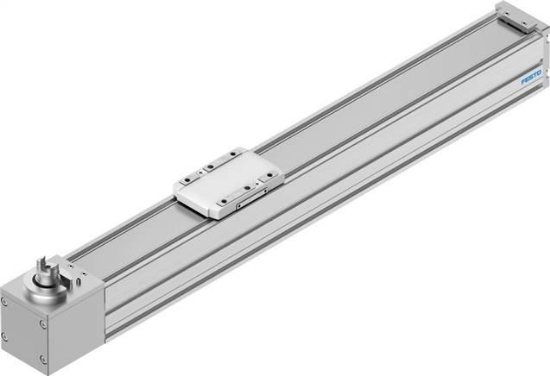

Actuator pinion effective diameter [mm]
|
19,10 |
|
Working stroke [mm]
|
200 |
|
size
|
45 |
|
Stroke reserve [mm]
|
0 |
|
V-belt bending [%]
|
0,187 |
|
V-belt separation [mm]
|
2 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Electro-mechanical linear axis |
|
Motor type
|
Step motor |
|
Measurement principle travel measurement system
|
Incremental |
|
Max. acceleration [Meter pro ]
|
15 |
|
Max. speed [m/s]
|
1,2 |
|
Repeatability
|
±0.1 mm |
|
Power-on time
|
100% |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
0 to 50 |
|
Flat torque 2nd grade ly []
|
140000 |
|
Flat torque 2nd grade lz []
|
170000 |
|
Max. actuator torque [Nm]
|
0,716 |
|
Max. force Fy [N]
|
300 |
|
Max. force Fz [N]
|
600 |
|
Max. empty run shift resistance [N]
|
7,8 |
|
Max. torque Mx [Nm]
|
5,5 |
|
Max. torque My [Nm]
|
4,7 |
|
Max. torque Mz [Nm]
|
4,7 |
|
Max. feed force Fx [N]
|
75 |
|
Empty run actuator torque [Nm]
|
0,075 |
|
Torsional moment of inertia to []
|
8.500 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
0,0281 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
0,9119 |
|
Mass inertia JO [Kilogramm ]
|
0,1862 |
|
Feed constant [Millimeter]
|
60 |
|
Moving mass [g]
|
169 |
|
Moving mass at 0 mm stroke [g]
|
169 |
|
Carriage weight [g]
|
55 |
|
Weight supplement per 10 mm stroke [g]
|
23 |
|
Base weight at 0 mm stroke [g]
|
760 |
|
Product weight [g]
|
1.219 |
|
Interface code actuator
|
V32 |
|
Closing cover material
|
Die cast aluminium, painted |
|
Profile material
|
Aluminium wrought alloy, anodised |
|
Material information
|
LABS containing materials included |
|
Masking tape material
|
Rust-free stainless steel band |
|
Actuator cover material
|
Die cast aluminium, painted |
|
Carriage guide material
|
Quenched and tempered steel |
|
Guide carriage material
|
Quenched and tempered steel |
|
Belt pulley material
|
High-alloyed stainless steels |
|
Carriage material
|
Aluminium die casting |
|
V-belt material
|
Polychloroprene with glass fibre |
|
Weight
|
55 g / Pcs |
|
GTIN
|
4052568295974 |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ELGC-TB (english) |
|
Document
|
Data sheet |
