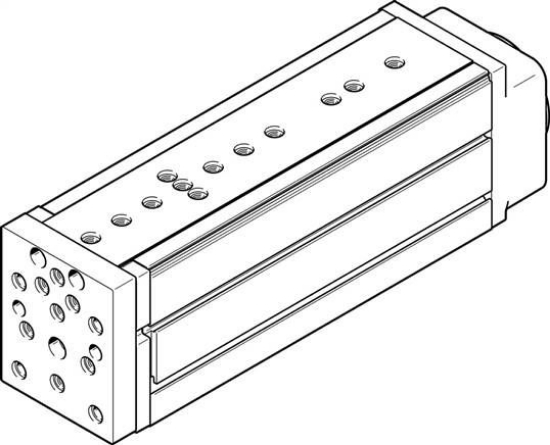

Working stroke [mm]
|
100 |
|
size
|
75 |
|
Running parallelity in z-direction [mm]
|
0,04 |
|
Parallelity [mm]
|
0,050 |
|
Reversing play [Mikrometer]
|
<= 50 µm |
|
Spindle diameter [mm]
|
20,0 |
|
Spindle pitch [Millimeter]
|
20,0 |
|
installation position
|
arbitrary |
|
Guide
|
Ball cage guide |
|
Construction set up
|
Guide |
|
Motor type
|
Step motor |
|
Spindle type
|
Ball screw drive |
|
Position detection
|
For proximity switch |
|
Max. acceleration [Meter pro ]
|
25 |
|
Max. speed [m/s]
|
1,30 |
|
Repeatability
|
±0.015 mm |
|
Power-on time
|
100% |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Noise level [Dezibel (?]
|
65 |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
0 to 60 |
|
Continuous feed force [N]
|
300 |
|
Max. actuator torque [Nm]
|
3,25 |
|
Max. force Fy [N]
|
1.539 |
|
Max. force Fz [N]
|
1.539 |
|
Max. torque Mx [Nm]
|
67,4 |
|
Max. torque My [Nm]
|
47,1 |
|
Max. torque Mz [Nm]
|
47,1 |
|
Max. radial force on drive shaft [N]
|
300 |
|
Max. feed force Fx [N]
|
450 |
|
Empty run actuator torque [Nm]
|
0,155 |
|
Guideline payload, horizontal [KGM]
|
14 |
|
Guideline payload, vertical [KGM]
|
14 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
0,10130 |
|
Mass inertia JO [Kilogramm ]
|
1,0512 |
|
Feed constant [Millimeter]
|
20,0 |
|
Maintenance interval
|
Lifetime lubrication |
|
Moving mass [g]
|
2.280 |
|
Product weight [g]
|
5.100 |
|
Fastening type
|
With female thread |
|
Material information
|
LABS containing materials included |
|
Cover material
|
Cast aluminium |
|
Guide carriage material
|
Roller bearing steel |
|
Housing material
|
Aluminium wrought alloy |
|
Joch plate material
|
Aluminium wrought alloy |
|
Spindle nut material
|
Roller bearing steel |
|
Spindle material
|
Roller bearing steel |
|
Weight
|
5.100 g / Pcs |
|
GTIN
|
4052568206161 |
|
Customs duty number
|
84799070 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EGSL (english) |
|
Document
|
Data sheet |
