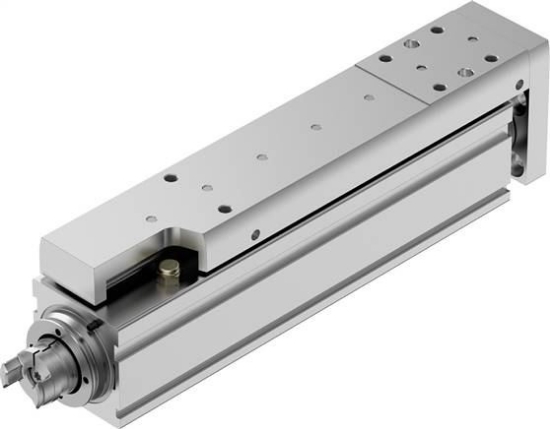

Working stroke [mm]
|
100 |
|
size
|
32 |
|
Stroke reserve [mm]
|
0 |
|
Reversing play [Mikrometer]
|
150 |
|
Spindle diameter [mm]
|
8 |
|
Spindle pitch [Millimeter]
|
8 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Electrical mini-carriages |
|
Motor type
|
Step motor |
|
Referencing
|
Fixed stopper block negative |
|
Spindle type
|
Ball screw drive |
|
Position detection
|
For proximity switch |
|
Max. acceleration [Meter pro ]
|
15 |
|
Max. speed [m/s]
|
0,5 |
|
Repeatability
|
±0.015 mm |
|
Power-on time
|
100% |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Noise level [Dezibel (?]
|
40 |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
0 to 50 |
|
Dynamic load factor fixed bearing [N]
|
3.795 |
|
Dynamic load factor linear guide [N]
|
2.135 |
|
Dynamic load factor ball screw drive [N]
|
2.000 |
|
Max. force Fy [N]
|
991 |
|
Max. force Fz [N]
|
991 |
|
Max. torque Mx [Nm]
|
3,40 |
|
Max. torque My [Nm]
|
3,17 |
|
Max. torque Mz [Nm]
|
3,17 |
|
Max. radial force on drive shaft [N]
|
140 |
|
Max. feed force Fx [N]
|
87 |
|
Guideline payload, horizontal [KGM]
|
2 |
|
Guideline payload, vertical [KGM]
|
2 |
|
Static load factor ball screw drive [N]
|
3.700 |
|
Static load factor linear guide [N]
|
3.880 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
0,04477 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
0,01621 |
|
Mass inertia JO [Kilogramm ]
|
0,00668 |
|
Feed constant [Millimeter]
|
8 |
|
Static load factor fixed bearing [N]
|
1.792 |
|
Guideline running performance [km]
|
5.000 |
|
Maintenance interval
|
Lifetime lubrication |
|
Moving mass at 0 mm stroke [g]
|
149 |
|
Weight supplement per 10 mm stroke [g]
|
30 |
|
Base weight at 0 mm stroke [g]
|
331 |
|
Product weight [g]
|
632 |
|
Supplement moved mass per 10 mm stroke [g]
|
12 |
|
Fastening type
|
with female threads |
|
Interface code actuator
|
V25 |
|
Material information
|
LABS containing materials included |
|
Carriage guide material
|
Roller bearing steel |
|
Guide carriage material
|
Roller bearing steel |
|
Housing material
|
Aluminium wrought alloy, anodised |
|
Joch plate material
|
Aluminium wrought alloy, anodised |
|
Piston rod material
|
High-alloyed stainless steels |
|
Carriage material
|
Aluminium wrought alloy, anodised |
|
Spindle nut material
|
Roller bearing steel |
|
Spindle material
|
Roller bearing steel |
|
Weight
|
650 g / Pcs |
|
GTIN
|
4052568291600 |
|
Customs duty number
|
84798997 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EGSC-BS (english) , Data sheet |
