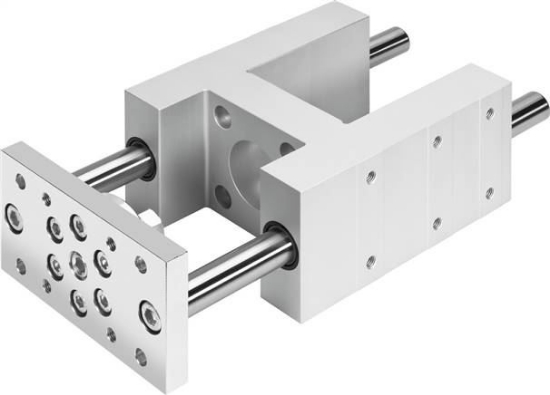

size
|
80 |
|
Stroke [mm]
|
400 |
|
Reversing play [Mikrometer]
|
0 |
|
installation position
|
arbitrary |
|
Guide
|
ball guide |
|
Construction set up
|
Guide |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
ambient temperature [°C]
|
-20 to 80 |
|
Max. force Fy [N]
|
2.300 |
|
Max. force Fy static [N]
|
3.120 |
|
Max. force Fz [N]
|
2.300 |
|
Max. force Fz static [N]
|
3.120 |
|
Max. torque Mx [Nm]
|
170 |
|
Max. torque Mx static [Nm]
|
231 |
|
Max. torque My [Nm]
|
191 |
|
Max. torque My static [Nm]
|
259 |
|
Max. torque Mz [Nm]
|
191 |
|
Max. torque Mz static [Nm]
|
259 |
|
Pushing force [N]
|
40,0 |
|
Moving mass [g]
|
8.222 |
|
Product weight [g]
|
13.557 |
|
Centre of mass of the moved mass at 0 mm stroke [mm]
|
54 |
|
Supplement centre of mass of the moved mass per 10 mm stroke [mm]
|
3,8 |
|
Fastening type
|
with female thread |
|
Material information
|
Copper and PTFE-free |
|
Guide element material
|
Quenched and tempered steel |
|
Housing material
|
Aluminium wrought alloy |
|
Joch plate material
|
Steel |
|
Weight
|
13.557 g / Pcs |
|
GTIN
|
4052568246266 |
|
Customs duty number
|
84821090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EAGF (english) , Data sheet |
