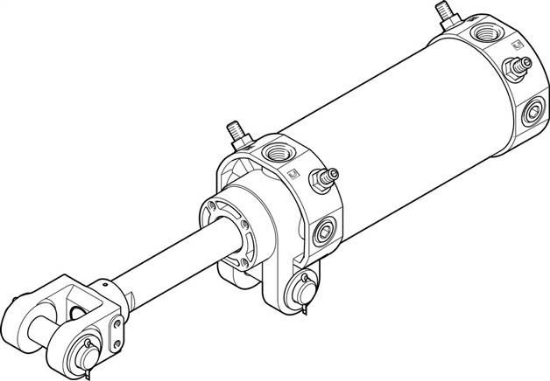

Stroke [mm]
|
150 |
|
Piston diameter
|
80 mm |
|
Piston rod thread
|
M20x1,5 |
|
Abstand Gabelkopf zur Schwenkbefestigung [mm]
|
28,0 |
|
Dampening
|
PPV: Pneumatic dampening both sides adjustable |
|
installation position
|
arbitrary |
|
Construction set up
|
Kolben |
|
Geschwindigkeitsregelung
|
integrierte Drosseln beidseitig |
|
Position detection
|
For proximity switch |
|
Piston rod end
|
Außengewinde mit Gabelkopf |
|
Operating pressure [bar]
|
1 to 10 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
ambient temperature [°C]
|
-10 to 60 |
|
Impact energy at the end positions [J]
|
1,8 |
|
Dampening length [mm]
|
30 |
|
Theoretical force at 6 bar, Return flow [N]
|
2.721 |
|
Theoretical force at 6 bar, flow [N]
|
3.016 |
|
Moving mass at 0 mm stroke [g]
|
1.651 |
|
Weight supplement per 10 mm stroke [g]
|
65 |
|
Base weight at 0 mm stroke [g]
|
4.185 |
|
Supplement moved mass per 10 mm stroke [g]
|
39 |
|
Alternative connections
|
See product drawing |
|
Fastening type
|
mit Zubehör |
|
Pneumatic connection
|
Rc3/8 |
|
Werkstoff Gabelkopf
|
Vergütungsstahl |
|
Material information
|
RoHs compliant |
|
Wiper material
|
Bronze |
|
Cover material
|
Aluminium die casting |
|
Seals material
|
NBR |
|
Piston rod material
|
Quenched and tempered steel |
|
Cylinder tube material
|
Aluminium wrought alloy |
|
Weight
|
3,8 kg / Pcs |
|
Customs duty number
|
84123100 |
|
Manufacturer
|
Festo |
