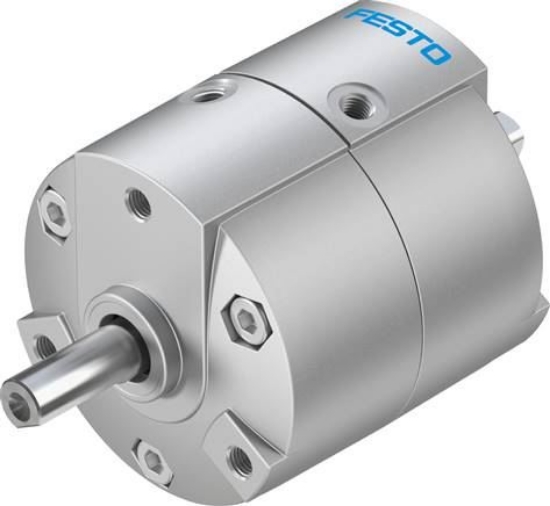

size
|
16 |
|
Dampening angle [deg]
|
0,5 |
|
Swivel angle [deg]
|
0 to 90 |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
installation position
|
arbitrary |
|
Principle of operation
|
double acting |
|
Construction set up
|
Rotary vane |
|
Position detection
|
For proximity switch |
|
Variants
|
Tap shaft |
|
Operating pressure [bar]
|
2.5 to 8 |
|
Max. swivel frequency at 6 bar [hz]
|
3 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
0 to 60 |
|
Max. axial force [N]
|
25 |
|
Max. radial force [N]
|
30 |
|
Theoretical torque at 6 bar [Nm]
|
2,00 |
|
Permitted mass moment of inertia [Kilogramm ]
|
0,01000 |
|
Product weight [g]
|
272 |
|
Fastening type
|
with female thread |
|
Pneumatic connection
|
M5 |
|
Material information
|
RoHs compliant |
|
Drive shaft material
|
Nickel-plated steel |
|
Seals material
|
TPE-U(PU) |
|
Housing material
|
Aluminium die casting |
|
Weight
|
272 g / Pcs |
|
Customs duty number
|
84123900 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DRVS (english) , Data sheet |
