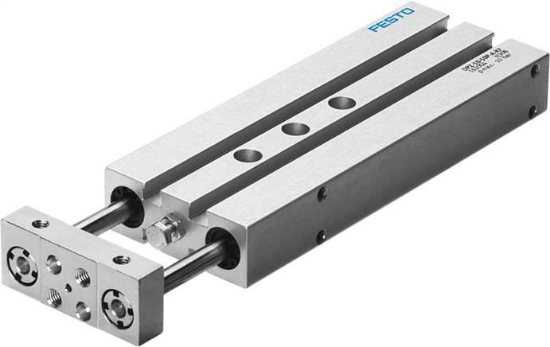

Centre of mass distance of payload to Joch plate [mm]
|
0 |
|
Stroke [mm]
|
50 |
|
Alignable end position range/Length [mm]
|
10 |
|
Piston diameter
|
16 mm |
|
Operating mode actuator unit
|
Joch |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
installation position
|
arbitrary |
|
Guide
|
sliding guide |
|
Construction set up
|
Guide |
|
Position detection
|
For proximity switch |
|
Operating pressure [bar]
|
1 to 10 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
-20 to 80 |
|
Impact energy at the end positions [J]
|
0,15 |
|
Max. usable load depending on the stroke at a defined distance xs [N]
|
12 |
|
Theoretical force at 6 bar, Return flow [N]
|
180 |
|
Theoretical force at 6 bar, flow [N]
|
242 |
|
Alternative connections
|
See product drawing |
|
Pneumatic connection
|
M5 |
|
Cover material
|
Aluminium wrought alloy |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Weight
|
550 g / Pcs |
|
GTIN
|
4052568114664 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: DPZ/DPZJ (english) |
|
Document
|
Data sheet |
