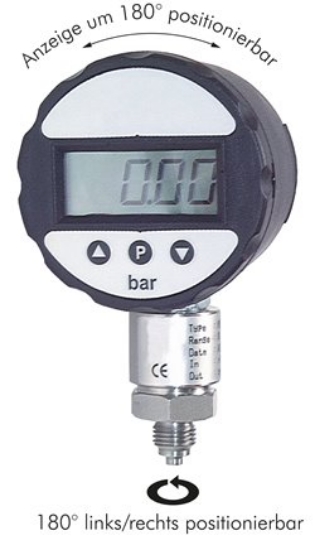

Digital pressure gauge 0 - 40 bar, Continuous operation with external 24 V DC supply and additional

Suitable:

Wherever a high measurement accuracy along with a high overpressure safety and sturdiness is required. For example, for calibration of pressure gauges (using the hand pump HP 40).

Materials:

Housing: plastic, connection: 1.4571, seal: NBR: (>= 1000 bar: 1.4571), Sensor: Ceramic (>= 1000 bar: 1.4571)

Connection thread:

G 1/4" * (>= 1000 bar: G 1/2" *)

Temperature range:

Environment: 0°C to +60°C, medium: -30°C to +85°C

Permissible overpressure:

up to 40 bar 3 x, up to 160 bar: 2 x, from 250 bar onwards: 1.5 x full scale value** (violating the lower measurement value is not permitted)

Class:

0,5

Conversion rate:

5 measurements / second

Automatic shut-off time:

8 min.

Auxiliary energy:

9V block battery, service life: 5,000 h

Protection class:

IP 65

Display:

4-digit LCD display, character height: 12.7, housing diameter: 74

Optional:

Continuous operation , different turn-off times , , -64, continuous operation with external 24 V DC supply (M 12-plug, 4-wire) , continuous operation with external 24 V DC supply and control output (30 V AC/DC, max. 2 A, M 12-plug, 5-wire) , ISO calibration certificate (factory calibration certificate) acc. to DIN EN ISO 17025, VDI and data sheet DAkkS-DKD-MB-3 with 10 measurement points
