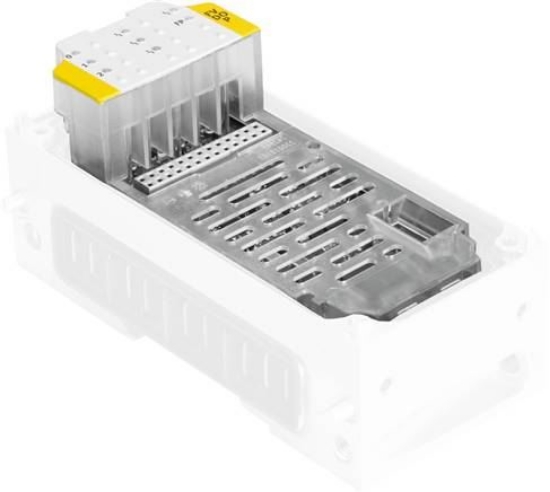

Dimensions W x L x H
|
50 mm x 107 mm x 55 mm |
|
Diagnosis
|
Unterspannung Ventile |
|
Parameterising
|
Diagnoseverhalten |
|
LED displays
|
1 Failsafe-Protokoll aktiv |
|
Intrinsic power input at operating voltage
|
Type 25 mA (operating voltage supply electronics) |
|
Max. power supply per channel
|
1.5 A |
|
Nominal operating voltage DC [V]
|
24 |
|
Potential separation channel - internal bus
|
Yes, for intermediate feed |
|
Potential separation channel - channel
|
no |
|
Corrosion resistant class KBK
|
(In integrated condition) |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Protection category
|
Depends on connection block |
|
ambient temperature [°C]
|
-5 to 50 |
|
Max. address volume outputs [Byte]
|
6 |
|
Max. address volume inputs [Byte]
|
6 |
|
Max. line length
|
200 m |
|
Material information
|
RoHs compliant |
|
Housing material
|
PC |
|
Fuse (short circuit)
|
Internal electronic fuse Per channel |
|
Quantity outputs:
|
2 |
|
Switching logic outputs
|
PM switching |
|
Safety function
|
Securely switch off the supply voltage of the valves |
|
Safety Integrity Level (SIL)
|
Safe switch off / SIL 3 |
|
Performance Level (PL)
|
Safety assembly category 3 performance level e |
|
Load capacity against functional ground [Nanofarad]
|
400 |
|
Max. reaction time on switch off command
|
F_WD_TIME + 23 ms |
|
Max. cumulative currents per module [A]
|
5 |
|
residual ripple
|
2 Vss within voltage range |
|
Voltage drop per channel [V]
|
0,6 |
|
Permitted voltage oscillations
|
-15 % / +20 % |
|
Certified awarding point
|
TUV Rhld 01/205/5294.01/18 |
|
CE certificate (see declaration of conformity)
|
to EU machinery directive |
|
Information about ambient temperature
|
Derating-Kurve für Pneumatik-Anschaltung beachten |
|
Permission
|
c UL us - Recognized (OL) |
|
Probability of Failure per Hour in [1/h].
|
1e-009 |
|
Information about outputs
|
1 internal channel to switch off valve voltage |
|
Weight
|
290 g / Pcs |
|
GTIN
|
4052568250201 |
|
Customs duty number
|
85389091 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CPX (english) , Data sheet |
