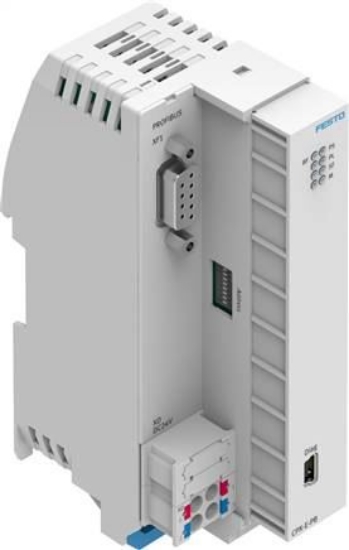

Dimensions W x L x H
|
42.2 mm x 125.8 mm x 76.5 mm |
|
Pitch dimension [mm]
|
18,9 |
|
Diagnosis via LED
|
Force mode |
|
Diagnosis via bus
|
Under-voltage |
|
Module parameter
|
Diagnosis under-voltage |
|
Voltage supply, connection type
|
Multi tube holder |
|
Voltage supply, connection technology
|
Spring tension clamp |
|
Voltage supply, number of poles/wires
|
4 |
|
Voltage supply, conductor cross-section [mm²]
|
0.2 to 1.5 |
|
Voltage supply, information on conductor cross-section
|
0.2 - 2.5 mm² for flexible conductor without wire end sleeve |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Oscillation strength
|
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Relative humidity
|
95 % |
|
Protect against direct and indirect contact
|
Funktionskleinspannung mit sicherer Trennung (PELV) |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Information about ambient temperature
|
-5 - 60 °C with vertical installation |
|
Permission
|
RCM mark |
|
Product weight [g]
|
145 |
|
Max. address volume outputs [Byte]
|
64 |
|
Fastening type
|
With Slot rail |
|
Material information
|
LABS containing materials included |
|
Housing material
|
PA |
|
Intrinsic power input operating voltage electronics/sensors
|
Type 75 mA |
|
Nominal operating voltage DC electronics / sensor [V]
|
24 |
|
Permitted voltage oscillations electronics/sensors
|
± 25 % |
|
Max. address volume inputs [Byte]
|
64 |
|
Power blackout bridging [ms]
|
20 |
|
Configuration support
|
GSD file |
|
Max. number of modules
|
10 |
|
System parameter
|
Force mode |
|
Operating element
|
DIL switch |
|
Max. power supply [A]
|
8 |
|
Voltage supply, function
|
Electronics and sensors |
|
Information about outputs
|
62 Byte mit E/A-Diagnose-Interface |
|
Information out inputs
|
62 byte with I/O diagnosis interface |
|
Fieldbus interface, galvanically separated
|
yes |
|
Fieldbus interface, transfer rate
|
9.6 kbit/s |
|
Fieldbus interface
|
Profibus |
|
Fieldbus interface, connection type
|
socket / container / …. |
|
Fieldbus interface, connection technology
|
Sub-D |
|
Fieldbus interface, number of pins / wires
|
9 |
|
Fieldbus interface, report
|
Profibus DP |
|
Feldbus-Schnittstelle, Max. Adressvolumen Eingänge [Byte]
|
64 |
|
Feldbus-Schnittstelle, Max. Adressvolumen Ausgänge [Byte]
|
64 |
|
Service interface, function
|
Diagnosis and parametrisation |
|
Service interface, connection type
|
socket / container / …. |
|
Service interface, connection technology
|
USB 2.0 type B mini |
|
Service interface, number of pins / wires
|
5 |
|
Fieldbus interface information
|
optional connection technology with accessories: |
|
Weight
|
145 g / Pcs |
|
GTIN
|
4052568291167 |
|
Customs duty number
|
85176200 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CPX-E (english) |
|
Document
|
Data sheet |
