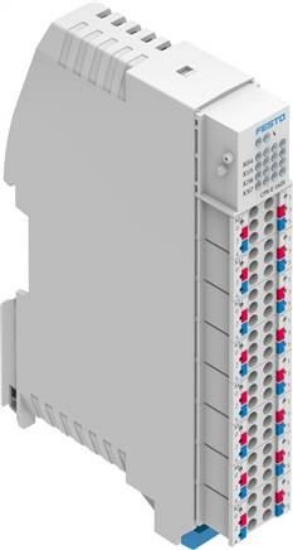

Dimensions W x L x H
|
18.9 mm x 76.6 mm x 124.3 mm |
|
Pitch dimension [mm]
|
18,9 |
|
Diagnosis via LED
|
Error per module |
|
Diagnosis via bus
|
Short circuit / overload circuit sensor supply |
|
Module parameter
|
Diagnosis short circuit sensor supply |
|
Channel parameter
|
Signal extension |
|
Fuse (short circuit)
|
Internal electronic fuse Per module |
|
Potential separation channel - internal bus
|
no |
|
Potential separation channel - channel
|
no |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Oscillation strength
|
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Relative humidity
|
95 % |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Information about ambient temperature
|
-5 - 60 °C with vertical installation |
|
Permission
|
RCM mark |
|
Product weight [g]
|
102 |
|
Fastening type
|
With Slot rail |
|
Material information
|
LABS containing materials included |
|
Housing material
|
PA |
|
Quantity inputs
|
16 |
|
Input debouncing time
|
0.1 ms |
|
Intrinsic power input operating voltage electronics/sensors
|
Type 15 mA |
|
Max. cumulative current inputs per module [A]
|
1,8 |
|
Nominal operating voltage DC electronics / sensor [V]
|
24 |
|
Switch level
|
Signal 0: <= 5 V |
|
Permitted voltage oscillations electronics/sensors
|
± 25 % |
|
Max. address volume inputs [Byte]
|
2 |
|
Characteristic curves inputs
|
to IEC 61131-2 type 3 |
|
Switching logic inputs
|
PNP (positive switching) |
|
Electrical connection: input, function
|
Digital input |
|
Electrical connection: input, connection type
|
8x multi tube holder |
|
Electrical connection: input, connection technology
|
Spring tension clamp |
|
Electrical connection: input, number of pins / wires
|
6 |
|
Electrical connection: inlet, conductor cross-section [mm²]
|
0.2 to 1.5 |
|
Electrical connection: inlet, information on conductor cross-section
|
0.2 - 2.5 mm² for flexible conductor without wire end sleeve |
|
Weight
|
102 g / Pcs |
|
GTIN
|
4052568291129 |
|
Customs duty number
|
85371098 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CPX-E (english) |
|
Document
|
Data sheet |
