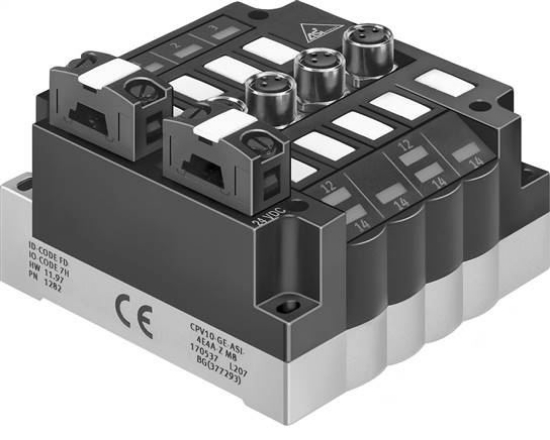

Max. number of valve spaces
|
4 |
|
Reverse polarity protection
|
for all electrical operating voltage connections |
|
Nominal load voltage DC [V]
|
24 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Relative humidity
|
0 - 95 % |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-5 to 50 |
|
LED display bus specific
|
AS-i: As interface Operation |
|
LED display product specific
|
0 ... 3: Inputs switching status |
|
Cover material
|
PA reinforced |
|
Material information
|
RoHs compliant |
|
Fieldbus interface
|
As interface: Flat cable plug |
|
Device specific diagnosis
|
Short circuit / overload inputs |
|
Max. number of valve coils
|
4 |
|
Max. number of inputs
|
4 |
|
Addressing area
|
1A ... 31A (0) |
|
Galvanic separation fieldbus interface
|
Opto-coupler |
|
Product identification
|
ID-Code: ID=Ah, ID1=7h, ID2=7h |
|
Seals material
|
CR |
|
Housing material
|
Aluminium die casting |
|
Quantity slaves per device
|
1 |
|
Operating voltage DC AS interface [V]
|
26.5 to 31.6 |
|
Debounce time inputs [ms]
|
3 |
|
Information about load voltage
|
Via load voltage connection (24 V DC) |
|
Load voltage range DC [V]
|
21.6 to 26.4 |
|
Nominal operating voltage DC AS-Interface [V]
|
26,5 |
|
Residual ripple AS interface
|
20 mVss |
|
Residual ripple load voltage
|
4 Vss |
|
Switch level
|
Signal 0: <= 5 V |
|
Power input for load supply from AS interface and load voltage connection
|
Inputs: 200 mA |
|
Characteristic curves inputs
|
to IEC 1131-2 type 02 |
|
Switching logic inputs
|
PNP (Positive switching) |
|
Weight
|
195 g / Pcs |
|
GTIN
|
4052568194291 |
|
Customs duty number
|
85371098 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: AS-interface components (english) |
|
Document
|
Data sheet |
