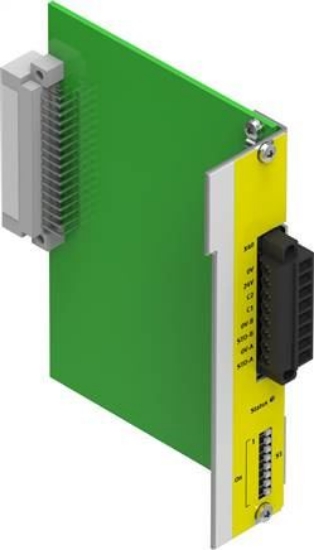

Material information
|
LABS containing materials included |
|
Nominal voltage logic supply DC [V]
|
24 |
|
Nominal operating voltage DC [V]
|
24 |
|
Nominal current logic supply [A]
|
0,02 |
|
Permitted range logic voltage
|
± 20 % |
|
Power input logic supply without parking brake [A]
|
0,03 |
|
Short circuit resistance
|
no |
|
Current carrying capacity at 40°C [A]
|
0,2 |
|
Fuse (short circuit)
|
no |
|
Design digital output
|
Potential free signal contact |
|
Quantity digital logic inputs
|
2 |
|
Digital outputs, switching logic
|
Contact closes when the torque is safely switched off (STO) |
|
Dimensions W x L x H
|
112.6 mm x 87.2 mm x 28.3 mm |
|
LED display product specific
|
Normal mode (Green)/ STO (Yellow) |
|
Safety function
|
Safe switched off torque (STO) |
|
Probability of Failure per Hour in [1/h].
|
1.27e-010 |
|
PED (Probability of failure on demand)
|
2.3e-005 |
|
Proof test interval [A]
|
20 |
|
Hardware error tolerance
|
1 |
|
SFF Safe Failure Fraction [%]
|
99,2 |
|
Certified for safety function to ISO 13849 and IEC 61508 (SIL)
|
Product can be inserted into SRP/CS to SIL 3 High Demand |
|
Safety Integrity Level (SIL)
|
Safe switched off torque (STO) / SIL 3 / SILCL 3 |
|
Performance Level (PL)
|
Safe switched off torque (STO) / category 4 performance level e |
|
Diagnose degree of coverage [%]
|
97,0 |
|
Certified for safety function to ISO 13849 (PL)
|
Product can be inserted into SRP/CS to category 4, PL e |
|
Certified awarding point
|
01/205/5165.01/14 |
|
Permission
|
TÜV |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Bearing temperature [°C]
|
-25 to 55 |
|
Relative humidity
|
5 - 95 % |
|
Protection category
|
IP20 |
|
ambient temperature [°C]
|
0 to 40 |
|
Product weight [g]
|
75 |
|
Fastening type
|
Plug-in module for CMMP-AS... -M3 |
|
installation position
|
arbitrary |
|
Wire ends
|
Wire end sleeve |
|
Connection cross-section [mm²]
|
0.25 to 0.5 |
|
electrical connection:
|
Screw clamp |
|
Display
|
LED green / yellow |
|
Operating element
|
none |
|
Logic input specification
|
Depending on IEC 61131-2 |
|
Properties logic inputs
|
Galvanically separated |
|
Work area logic input [V]
|
19.2 to 28.8 |
|
Max. nominal input current [A]
|
0,030 |
|
Debounce time inputs [ms]
|
0,3 |
|
Current carrying capacity per output [mA]
|
200 |
|
Max. current digital logic outputs [mA]
|
200 |
|
Output fuses
|
no |
|
Weight
|
75 g / Pcs |
|
GTIN
|
4052568237943 |
|
Customs duty number
|
85371098 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CMMP-AS (english) , Data sheet |
