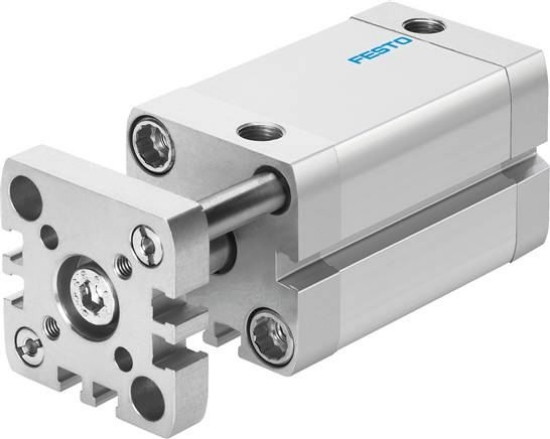

Stroke [mm]
|
10 |
|
Piston diameter
|
12 mm |
|
Based on standard
|
ISO 21287 |
|
Dampening
|
P: Elastic silencer rings / plates double-sided |
|
installation position
|
arbitrary |
|
Construction set up
|
Piston |
|
Position detection
|
For proximity switch |
|
Anti-twist lock / guide
|
Guide rod with yoke |
|
Operating pressure [bar]
|
1.5 to 10 |
|
Principle of operation
|
double acting |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
ambient temperature [°C]
|
-20 to 80 |
|
Impact energy at the end positions [J]
|
0,07 |
|
Theoretical force at 6 bar, Return flow [N]
|
51 |
|
Theoretical force at 6 bar, flow [N]
|
68 |
|
Moving mass at 0 mm stroke [g]
|
22 |
|
Weight supplement per 10 mm stroke [g]
|
14 |
|
Base weight at 0 mm stroke [g]
|
90 |
|
Supplement moved mass per 10 mm stroke [g]
|
4 |
|
Pneumatic connection
|
M5 |
|
Material information
|
RoHs compliant |
|
Cover material
|
aluminium |
|
Seals material
|
TPE-U(PUR) |
|
Piston rod material
|
High-alloyed steel |
|
Cylinder tube material
|
Aluminium wrought alloy |
|
Weight
|
90 g / Pcs |
|
GTIN
|
4052568198343 |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ADNGF (english) |
|
Document
|
Data sheet |
