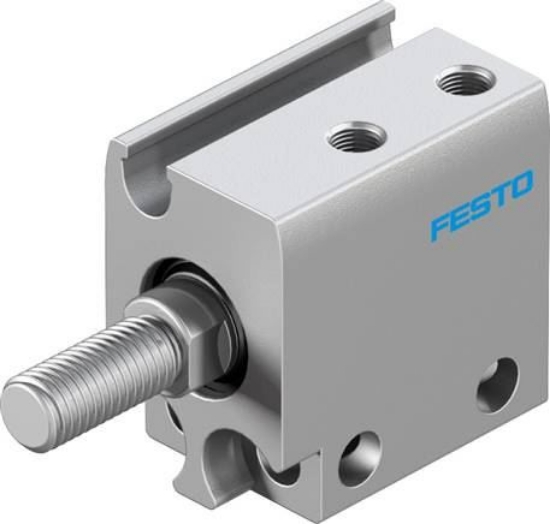

Stroke [mm]
|
5 |
|
Piston diameter
|
10 mm |
|
Dampening
|
No dampening |
|
installation position
|
arbitrary |
|
Principle of operation
|
double acting |
|
Piston rod end
|
Male thread |
|
Construction set up
|
Piston |
|
Variants
|
One-sided piston rod |
|
Operating pressure [bar]
|
1 to 8 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
-10 to 60 |
|
Impact energy at the end positions [J]
|
0,012 |
|
Theoretical force at 6 bar, Return flow [N]
|
30,2 |
|
Theoretical force at 6 bar, flow [N]
|
47 |
|
Moving mass [g]
|
4,1 |
|
Product weight [g]
|
17,0 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection
|
M3 |
|
Material information
|
RoHs compliant |
|
Cover material
|
Aluminium wrought alloy |
|
Dynamic seals material
|
NBR |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Weight
|
17,0 g / Pcs |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: ADN-S/AEN-S (english) |
|
Document
|
Data sheet |
