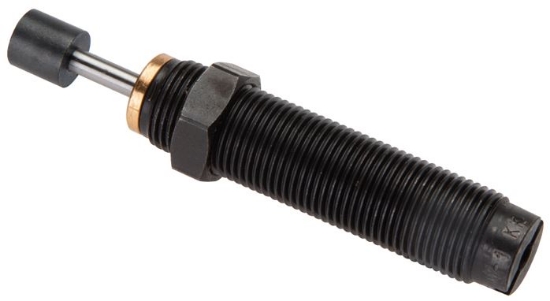

Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel
Temperature range:
-10°C to +66°C
Stroke speed:
0.15 - 4 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4 (max. energy consumed per hour expressed in Nm/h) is possible in the case of temporary switch-off, or when the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating).
| عنوان ویژگی |
مقدار ویژگی |
|
max. Energy consumption per stroke (W3) [Nm]
|
3,50 |
|
max. Energy consumption per hour (W4) [Nm]
|
5.600 |
|
effective mass (me) [KGM]
|
1.8 - 5.4 |
|
Spring force [N]
|
2 - 6 |
|
Thread C
|
M 8 x 1 |
|
Max. axial deviation* [°]
|
2 |
|
A [mm]
|
4,1 |
|
D [mm]
|
HEX 10 |
|
E [mm]
|
40,9 |
|
F [mm]
|
3,0 |
|
Ø G [mm]
|
2,5 |
|
H / stroke [mm]
|
8,0 |
|
I [mm]
|
13,1 |
|
J [mm]
|
2 |
|
Ø K [mm]
|
6,4 |
|
Clamping flange***
|
|
|
Stop sleeve
|
|
|
Side load adapter**
|
|
|
Locking nut
|
|
