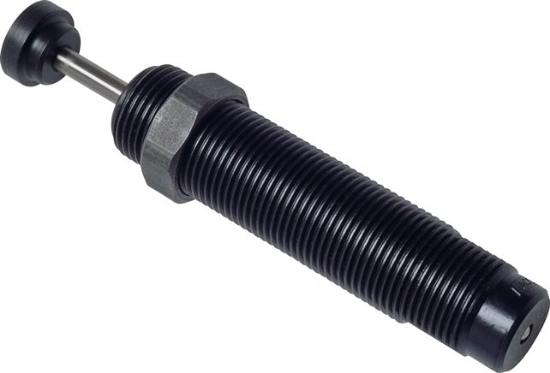

Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, rust-free steel (type SC 45...: steel hard chrome plated)
Temperature range:
0°C to max. +66°C (SC 45...: -12°C to max. +66°C)
Stroke speed:
0,15 up to 3,7 m/s (Type SC²: 0,1 up to 5,7 m/s, Type SC 45...: 0,02 up to 0,46 m/s)
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
|
max. Energy consumption per stroke (W3) [Nm]
|
680 |
|
max. Energy consumption per hour (W4) [Nm]
|
112.000 |
|
effective mass (me) [KGM]
|
11800 - 27000 |
|
Spring force [N]
|
47 - 242 |
|
Thread B
|
M 45 x 1.5 |
|
Max. axial deviation* [°]
|
3 |
|
D [mm]
|
216,5 |
|
E [mm]
|
9,5 |
|
F [mm]
|
***** |
|
Ø G [mm]
|
12,6 |
|
H / stroke [mm]
|
50 |
|
I [mm]
|
48,5 |
|
Ø K [mm]
|
35 |
|
Temperature range [°C]
|
-12 to +66 |
