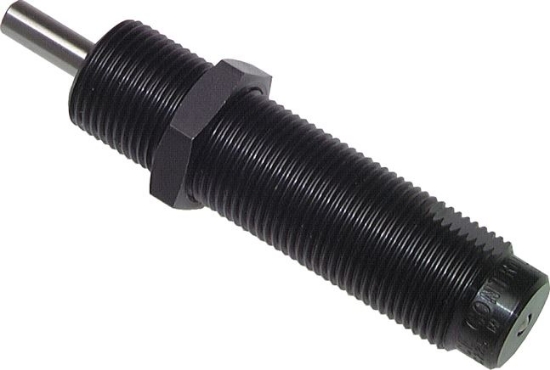

Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hardened, stainless steel, roller type diaphragm: ethylene-propylene
Temperature range:
0°C to +66°C
Stroke speed:
0,06 - 6 m/s
Fixed limit stop:
integrated
Information:
Exceeding W4: (max. energy absorbed per hour expressed in Nm/h) is possible when switched off temporarily or the shock absorber is cooled with the cylinder exhaust air (take note of the approved heating)
| عنوان ویژگی |
مقدار ویژگی |
|
max. Energy consumption per stroke (W3) [Nm]
|
136 |
|
max. Energy consumption per hour (W4) [Nm]
|
68.000 |
|
effective mass (me) [KGM]
|
9 - 136 |
|
Spring force [N]
|
5 - 10 |
|
Thread B
|
M 25 x 1.5 |
|
Max. axial deviation* [°]
|
2 |
|
A [mm]
|
7,3 |
|
C [mm]
|
110,3 |
|
D [mm]
|
HEX 10 |
|
E [mm]
|
10 |
|
F [mm]
|
HEX 30 |
|
Ø G [mm]
|
8,0 |
|
H / stroke [mm]
|
25,4 |
|
I [mm]
|
30,5 |
|
Impact head
|
|
|
clamping flange
|
|
|
Stop sleeve
|
|
|
Side load adapter**
|
|
|
Locking nut
|
|
