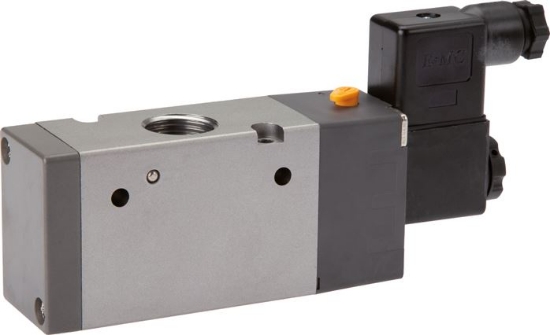

Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide
Temperature range:
-5°C to +60°C
Operating pressure:
1,5 - 8 bar
Media:
oiled and unoiled filtered compressed air
Switching time (at 5 bar):
<50 ms, max. 5 switching cycles/sec (5/3-way: max. 3 switching cycles/sec)
Control voltages:
Standard: 24 V=, 230 V AC, upon request: other voltages
Voltage tolerance:
± 10 %
Protection class (VDE 0470/EN 60529):
IP 65
Service life:
min. 40 million switching cycles
Power consumption:
Direct current: 3 W, alternating current: 4 VA
Solenoid:
T1 (plug size 1)
Information:
The coil and plug are enclosed as loose parts.
|
Control voltage
|
230 V AC |
|
function
|
open (NO)* |
|
Thread
|
G 1/2" |
|
flow [l/min]
|
2.250 |
|
A [mm]
|
144,7 |
|
B [mm]
|
50 |
|
C [mm]
|
34 |
|
D [mm]
|
13,5 |
|
E [mm]
|
21,0 |
|
F [mm]
|
48 |
|
G1
|
G 1/2" |
|
H1 [mm]
|
5,3 |
|
H2 [mm]
|
4,3 |
|
J [mm]
|
27 |
|
K [mm]
|
24,8 |
|
L [mm]
|
40,5 |
|
M [mm]
|
29,3 |
|
N [mm]
|
31,5 |
|
O [mm]
|
45,0 |
|
P [mm]
|
-2 |
|
U [mm]
|
75 |
|
V [mm]
|
40,5 |
|
W [mm]
|
0 |
|
Weight
|
490 g / Pcs |
|
GTIN
|
4050571715168 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
EMC |
|
Document
|
Catalogue page Atlas 9 |
|
Document
|
Data sheet |
