Materials:
Body and slider: aluminium, seals: NBR
Temperature range:
-5°C to +60°C
Operating pressure:
0 - 8 bar
Media:
oiled and unoiled filtered compressed air
Pressure input:
Possible on every connection
|
function
|
Detend |
|

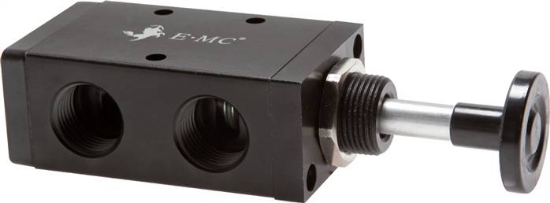

Model series
|
VL40 |
|
Thread
|
G 1/2" |
|
flow [l/min]
|
2.250 |
|
A [mm]
|
87,5 |
|
B [mm]
|
50 |
|
C [mm]
|
34 |
|
D [mm]
|
45,0 |
|
E [mm]
|
31,0 |
|
F [mm]
|
28 |
|
G1
|
G 1/2" |
|
H [mm]
|
5,5 |
|
J [mm]
|
36 |
|
K [mm]
|
141 |
|
M [mm]
|
29,3 |
|
N [mm]
|
31,5 |
|
O [mm]
|
45,0 |
|
P [mm]
|
2,0 |
|
U
|
M 22 x 1.5 |
|
V [mm]
|
5 |
|
W [mm]
|
0 |
|
X [mm]
|
9,5 |
|
Weight
|
420 g / Pcs |
|
GTIN
|
4050571459864 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
EMC |
|
Document
|
Catalogue page Atlas 9 |
|
Document
|
Data sheet |
