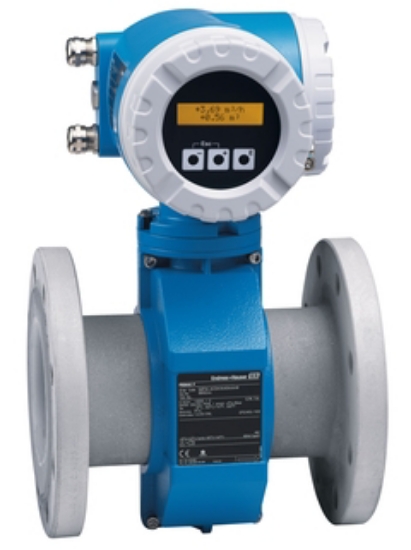

ترانسمیتر جریان (فلوترانسمیتر) اندرس هازر سری Promag P

ترانسمیتر جریان (فلوترانسمیتر) اندرس هازر سری Promag P ساخت فرانسه Endress+Hauser

اتصال: 8 اینچ، DN200

دبی و جریان: 1100مترمکعب در ساعت
فشارنامی: 16 بار
دمای کاری: منفی 10 تا 150 درجه سانتیگراد

برای دسترسی به صفحه اصلی ترانسمیتر جریان (فلوترانسمیتر) اندرس هازر سری Promag P

Endress+Hauser

• Product headline

  The flowmeter for highest medium temperatures with an ultra-compact transmitter.
  Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

• Sensor features

  Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
  Nominal diameter: max. DN 600 (24"). All common Ex approvals. Liner made of PTFE or PFA.

• Transmitter features

  Space‐saving transmitter – full functionality on the smallest footprint. Time‐saving local operation without additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
  Robust, ultra-compact transmitter housing. Local display available.

• Nominal diameter range

  DN 15 to 600 (½ to 24")

• Wetted materials

  Liner: PFA, PTFE
  Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
  Duplex 1.4462 (UNS S31803)

• Measured variables

  Volume flow, conductivity, mass flow, corrected volume flow, corrected conductivity

• Max. measurement error

  Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
  Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s

• Measuring range

  4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)

• Max. process pressure

  PN 40, Class 300, 20K

• Medium temperature range

  Liner material PFA: –20 to +150 °C (–4 to +302 °F)
  Liner material PFA high‐temperature: –20 to +180 °C (–4 to +356 °F)
  Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

• Ambient temperature range

  Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
  Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)

• Sensor housing material

  DN 15 to 300 (½ to 12"): AlSi10Mg, coated
  DN 350 to 600 (14 to 24"): Carbon steel with protective varnish

• Transmitter housing material

  AlSi10Mg, coated

• Degree of protection

  IP66/67, type 4X enclosure

• Display/Operation

  4‐line backlit display available (no local operation)
  Configuration via web browser and operating tools possible

• Outputs

  4‐20 mA HART (active)
  Pulse/frequency/switch output (passive)

• Inputs

  None

• Digital communication

  HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET

• Power supply

  DC 20 to 30 V

• Hazardous area approvals

  ATEX, IECEx, cCSAus, INMETRO

• Other approvals and certificates



• Product safety

  CE, C-Tick

• Metrological approvals and certificates

  Calibration performed on accredited calibration facilities (acc. to ISO/IEC
  17025)
  Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)

• Marine approvals and certificates

  LR approval, DNV GL approval, ABS approval, BV approval

• Pressure approvals and certificates

  PED, CRN

• Material certificates

  3.1 material

• Hygienic approvals and certificates

  Drinking water approval: ACS, NSF 61, WRAS
